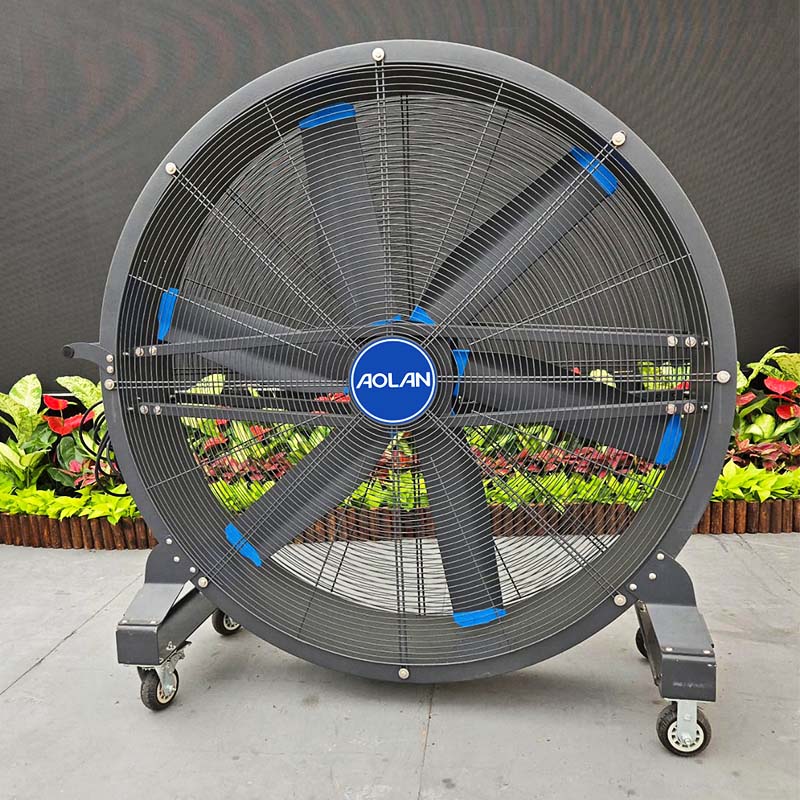

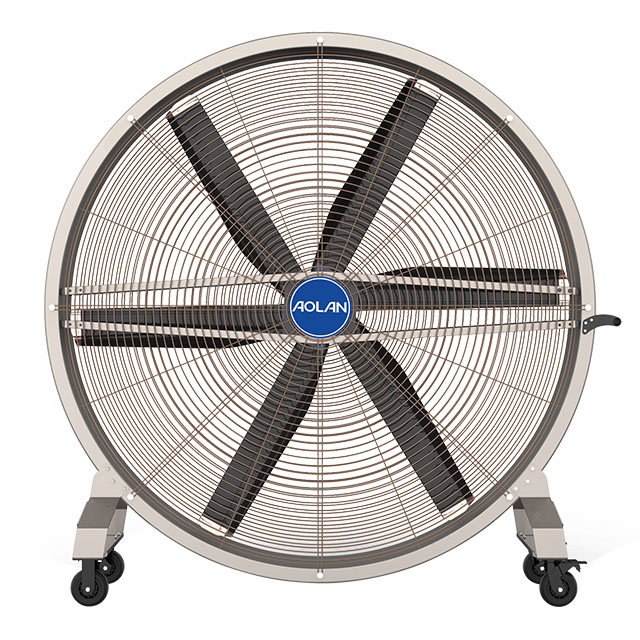

Aolan Giant Waterproof Portable Movable Fan Electric with 220V 380V AC Motor HVLS for Space Ventilation
Aolan ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
Motor :
ADS-Y12AMFuente eléctrica (V/Hz) :
1PH 220 / 50/60HZRuido :
≤39 dBAFuerza :
0.55KwFlujo de aire (m3/h) :
30000Área de enfriamiento (m2) :
80Diámetro :
1.2Air Supply distance (m) :
1-7Rotating Speed (rpm) :
600Weight(kg) :

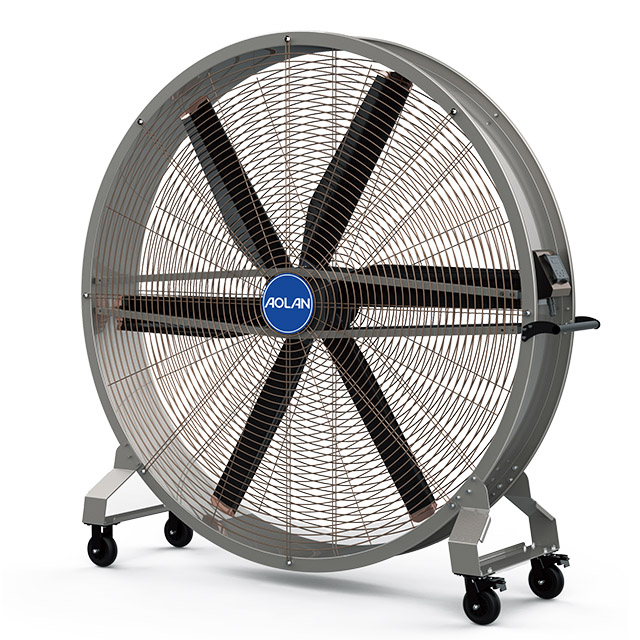

73THE PM VFD MOVABLE FAN
Aolan ADS-Y series the PM VFD movable fan unique wing design, straight blade diameter from 1~2m, adopting the principle of aerodynamics and advanced technology manufacturing blades wing, formed by strong air agitation ability of circulation flow field, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area,increase your comfort level. At the same time avoid the use of traditional high-speed fan in the direction of the wind all year round, causing a variety of human health problems, greatly improve the comfort of the environment.
ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
Specification:
| Model/Specs |
ADS-Y12AR | ADS-Y15AR | ADS-Y20AR |
| Diameter (m) | 1.2 | 1.5 | 2 |
| Power (KW) | 0.55 | 0.75 | 1 |
| Voltage (V) | 1PH 220 | ||
| Frequency (HZ) | 50/60HZ |
||
| Airfiow (m3/min) | 30000 | 55000 | 88000 |
| Air speed (m/s) | 1-7 | 1-6.5 | 1-5.5 |
| Number of blades (Pcs) | 5 | 5 | 6 |
| Rotating speed (rpm) | 600 | 420 | 300 |
| Noise （dB(A)） | ≤39dBA | ||
| Weight (kg) | 73 | 93 | 121 |
| Coverage area (m2) | 80 | 150 | 260 |
Characteristics:

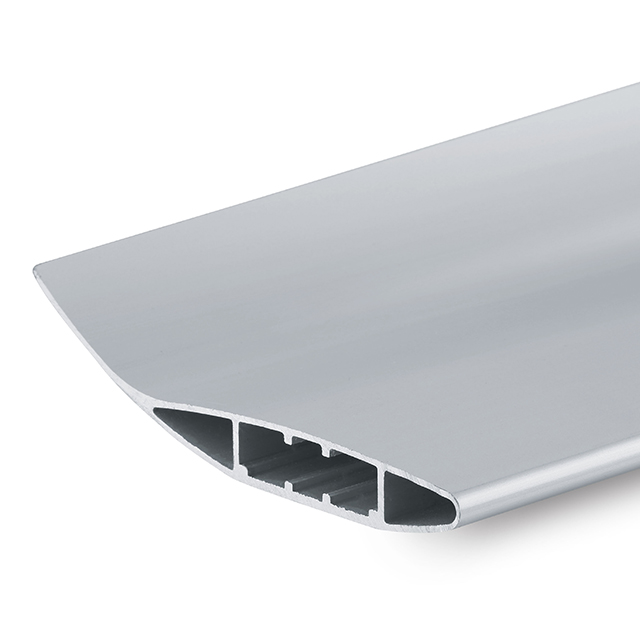

STREAMLINED FAN BLADE
It is made of aluminum and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, light weight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment. which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
ENERGY SAVING TAIL
When the fan blade is running, the air will generate vortex at the end of the aerofoil fan blade. The tail wing can eliminatethis part of energy loss, stabilize the fan operation, and make the air flow more consistent with the aerodynamic principle.
|

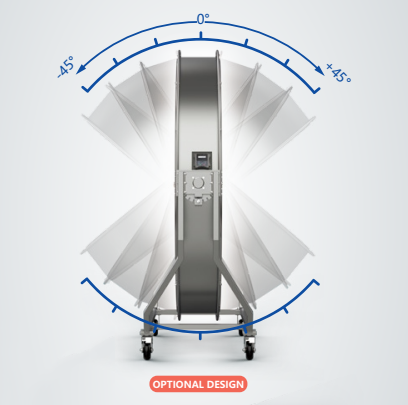

ADJUSTABLE AIR SUPPLY ANGLE
In different places of use,the fan's air delivery angle needs to be more flexible and versatile, this time the adjustable angle of the Model B movable fan can make a big difference.Pitch angle adjustable range of-45°~+45° (horizontal blowing for 0²), 15° a gear, a total of 7 gears. |
 |

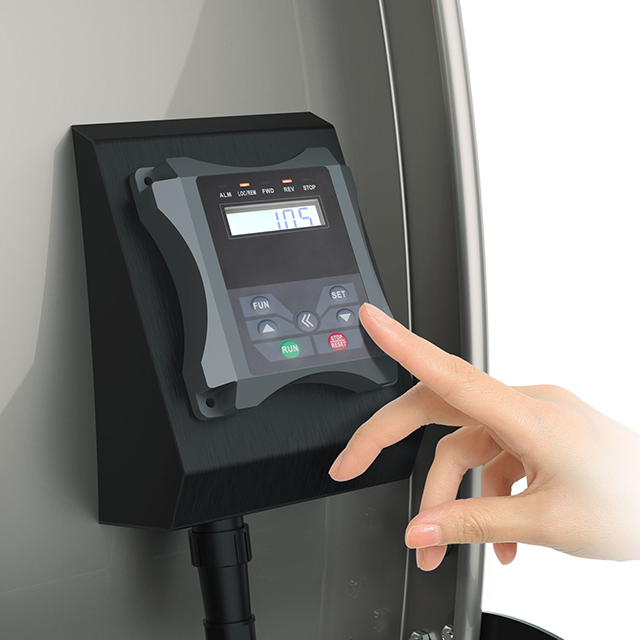

EASY TO OPERATION
Knob speed control (S): Small and convenient, easy to operation. Power saving and durable. Quickly switch the forward
and reverse directions of the motor.
Push-button speed control (M): with LED indicator light, compact structure, which can reduce the risk of dust
accumulation and penetration, high protection level of button operation.
Four-button operation (M): start, stop, accelerate, decelerate.
Five-key operation (S): programming key, running key, stop key, confirmation key, encoder button.
Digital display (S/M): display function parameters and setting values, various operation data fault cause codes, the state
of the operation panel and the frequency conversion operation state, which is convenient for personnel to maintain in time.

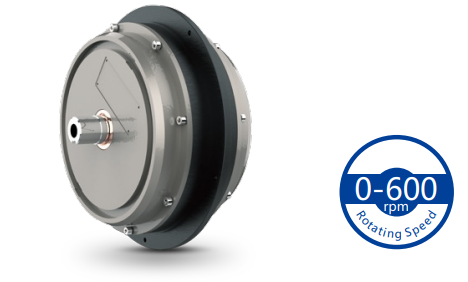

PERMANENT MAGNET SYNCHRONOUS MOTOR

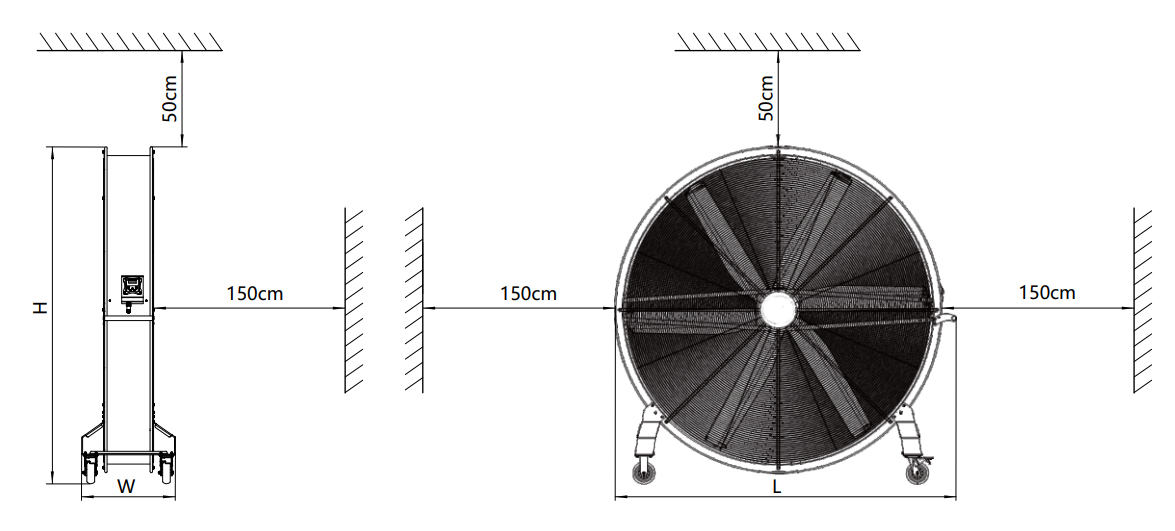

| Model | L(cm) | W(cm) | H(cm) |
| ADS-Y12AR | 131 | 56 | 146 |
| ADS-Y15AR | 170 | 56 | 171 |
| ADS-Y20AR | 220 | 73.6 | 221 |

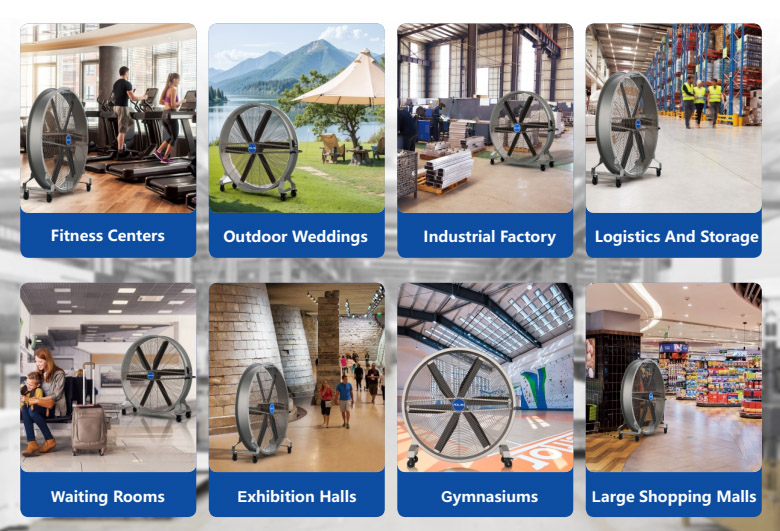

APPLICATIONS
Widely used in fitness center, outdoor wedding venues. industrial factory, logistics warehousing, waiting room, exhibitionha,physicaleducationhalland otherlargespaceplaces,asanewtypeof ceilingfanspaceventilation, personnelcoolingltcanpushalargeamountofairlwtotheground,formingacertainheightofthmoving airflow layer, thus contributing to the overall air circulation; Like the natural breeze system, enjoy the intimate experience of natural wind.
Los ventiladores Aolan HVLS utilizan aspas aerodinámicas para generar flujo de aire y cola para formar turbulencia. Flujo y genera un flujo de aire terrestre de 0,25-3,5 m/s a través del sistema de control, lo que reduce considerablemente Mejora el confort ambiental. El área de cobertura efectiva puede alcanzar los 1700 metros cuadrados. metros (diámetro 46 metros).
VER MÁS
Aolan ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
VER MÁS

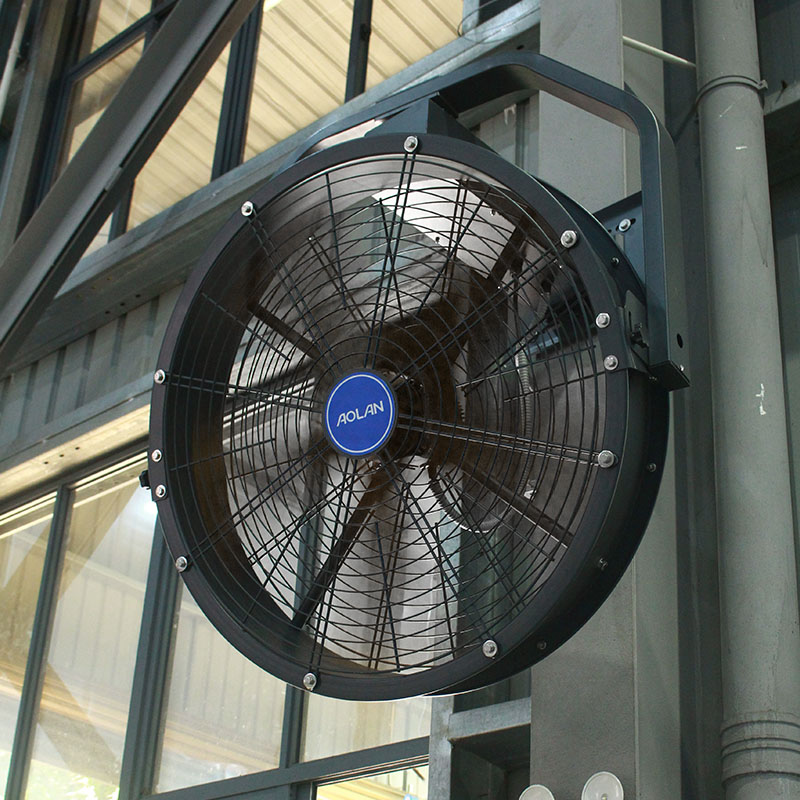

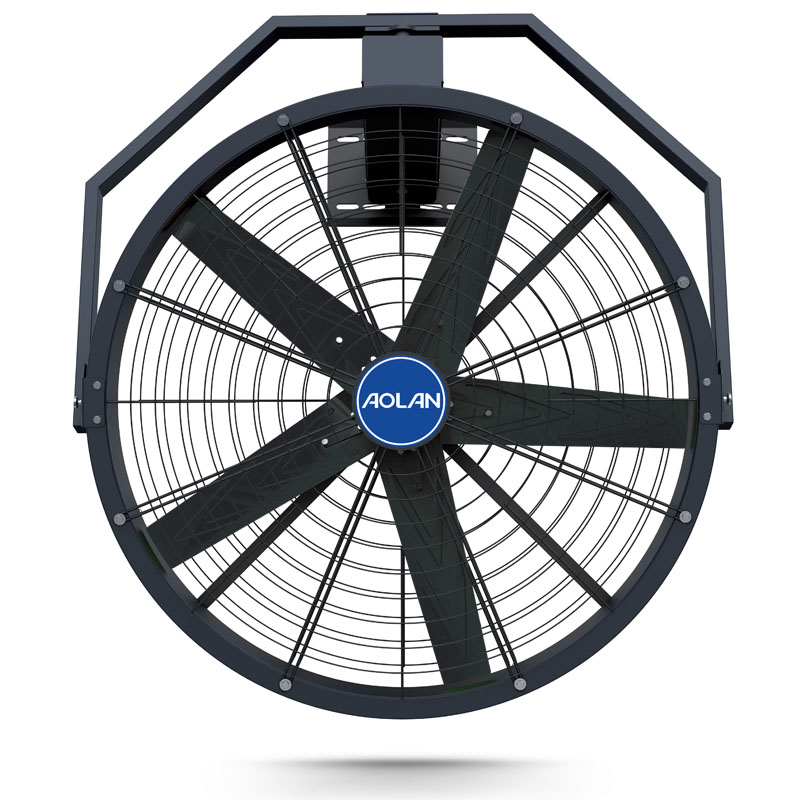

PERMANENT MAGNET VARIABLE FREQUENCY WALLFAN 0.6m 0.9m 1.0m 1.1m 1.2m Wall Fan Oscillating Type Aolan HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
VER MÁS
PERMANENT MAGNET VARIABLE FREQUENCY WALLFAN 0.6m 0.9m 1.0m 1.1m 1.2m Wall Fan Oscillating Type Aolan HDB series permanent magnet variable frequency wall fan ,with unique wing design, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 24 meters.
VER MÁS

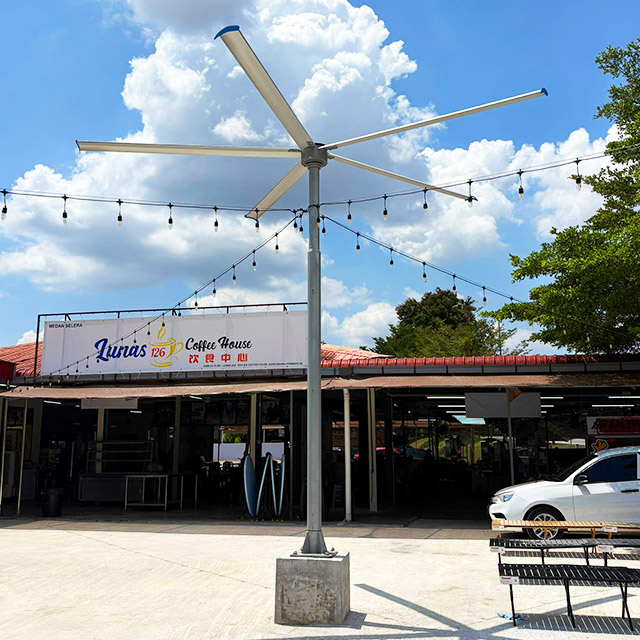

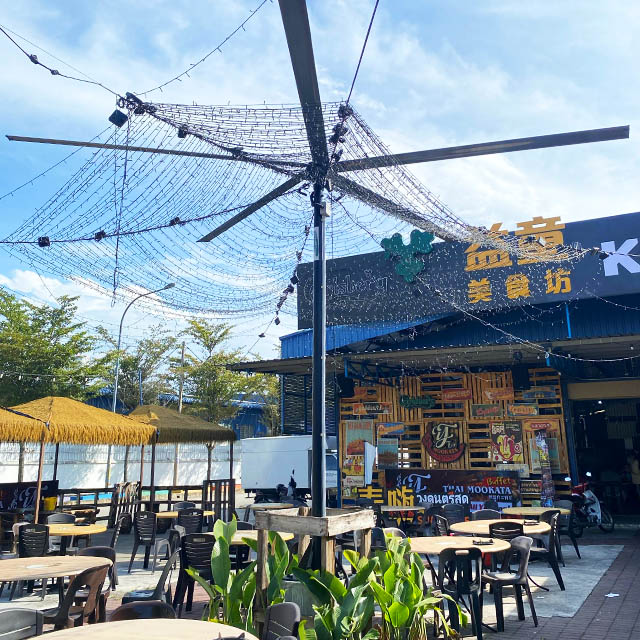

AOLAN VErtical FAN 3-7.3m large outdoor use pole fan Our ADS-L series smart permanent magnet large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
VER MÁS
AOLAN VErtical FAN 3-7.3m large outdoor use pole fan Our ADS-L series smart permanent magnet large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
VER MÁS
Los ventiladores Aolan HVLS utilizan aspas aerodinámicas para generar flujo de aire y cola para formar turbulencia. Flujo y genera un flujo de aire terrestre de 0,25-3,5 m/s a través del sistema de control, lo que reduce considerablemente Mejora el confort ambiental. El área de cobertura efectiva puede alcanzar los 1700 metros cuadrados. metros (diámetro 46 metros).
VER MÁS

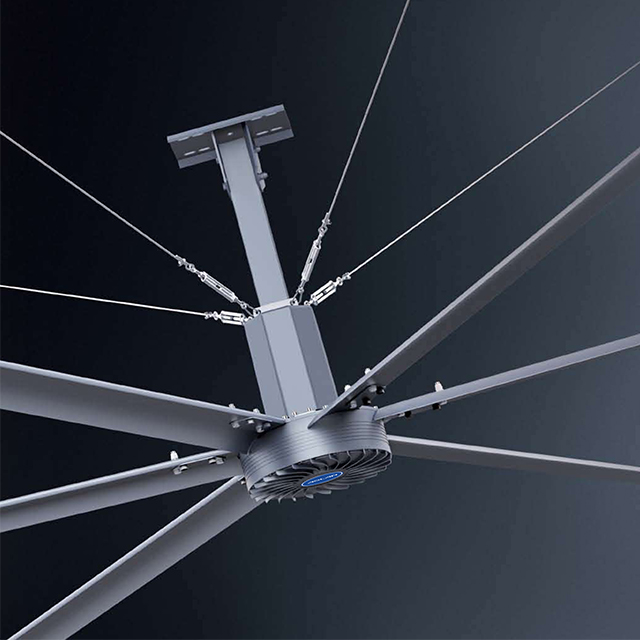

Aolan HVLS fans use aerodynamic blades to generate airflow and tail to form turbulence flow, and generate 0.25-3.5m/s ground air flow through the control system, which greatly improves environmental comfort. The effective coverage area can reach 1700 square meters (diameter 46 meters).
